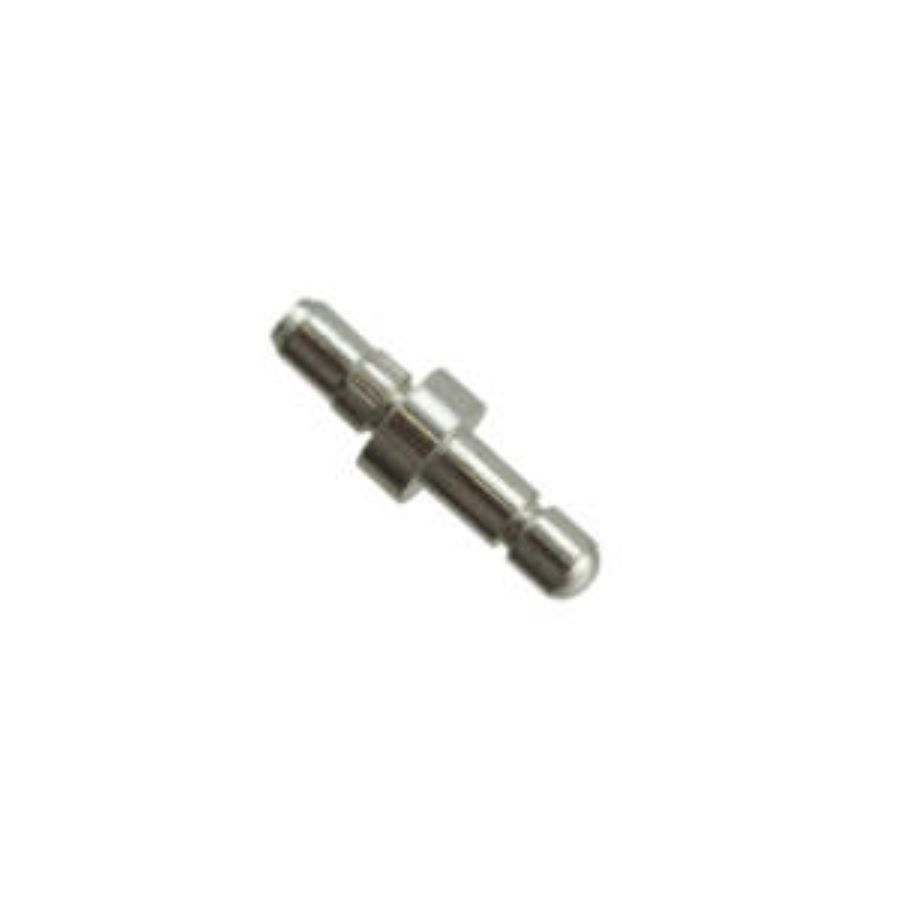

3-60599-1
Manufacturer:
TE Connectivity
Mfr.Part #:
3-60599-1
Datasheet:
Description:
Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 7.34 mm |
| Termination | Receptacle |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 4.76 mm |
| Material | Brass |
| Packaging | Bulk |
| Depth | 2.79 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Pin Terminal |
| Current Rating | 6 A |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| Body Material | Brass |
| Hole Diameter | 1.5748 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Solder |
| Contact Mating Length | 4.191 mm |
| Body Plating | Tin |
| PCB Thickness | 1.6002 mm |
| Insulated Wire Support | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Stud Size | 1.47 mm |
Out of Stock
Distributors
--
--Unit Price$--
Ext.Price$--
| Qty | Unit Price | Ext.Price |
|---|---|---|
No data | ||
